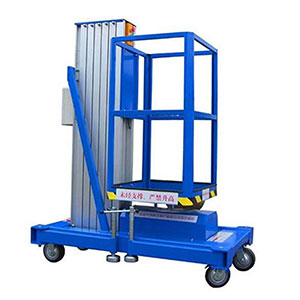

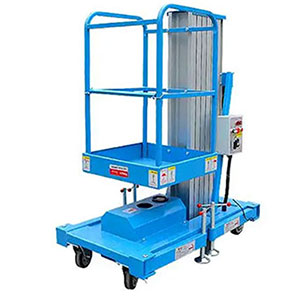

This aluminum‑alloy aerial‑work‑platform supports multiple travelling modes, including manual towing, assisted walking, self‑propelled movement, trailer towing and vehicle‑mounted installation. It is separated into single‑column, double‑column and triple‑column types. The optional lifting height ranges from 4 to 16 meters, with rated load capacity between 120‑300 kilograms. Light‑weight and compact‑sized, the equipment is widely‑applied for indoor high‑altitude installation, maintenance and cleaning tasks.
PRODUCT DESCRIPTION

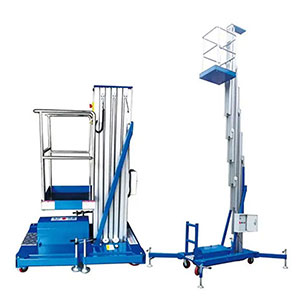

Choose from our versatile range of single, double, triple, and quad-mast lifts. Designed for efficiency, these units feature a lightweight frame that enables easy one-person control and maneuverability. Their minimal footprint translates directly into substantial freight savings and convenient operation in tight spaces.
PRODUCT CUSTOMIZATION
We offer tailored solutions to ensure our equipment perfectly suits your operational needs. Our extensive customization options include branding (colors, logos, and nameplates) as well as technical specifications (power and voltage configurations) to meet your local standards.
PRODUCT DETAILS
Performance: 4–18m Height | 100–200kg Load Capacity.
Material: High-strength, premium-grade aluminum alloy.
Portability: Compact design for doorway/elevator access; one-person maneuverability.
Drive & Tires: Low-noise polyurethane wheels; safe for all indoor flooring.

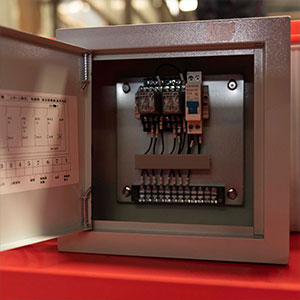

Control: Dual-control system (Platform + Remote Control).
Safety: Equipped with protective wire ropes and emergency safety devices.
Parameters
| Product Name | Model | Max Platform Height(M) | Max Working Height(M) | Platform Size(M) | Overall Dimension(M) | Outrigger Spread Dimension（M） | Machine Weight(KG) |

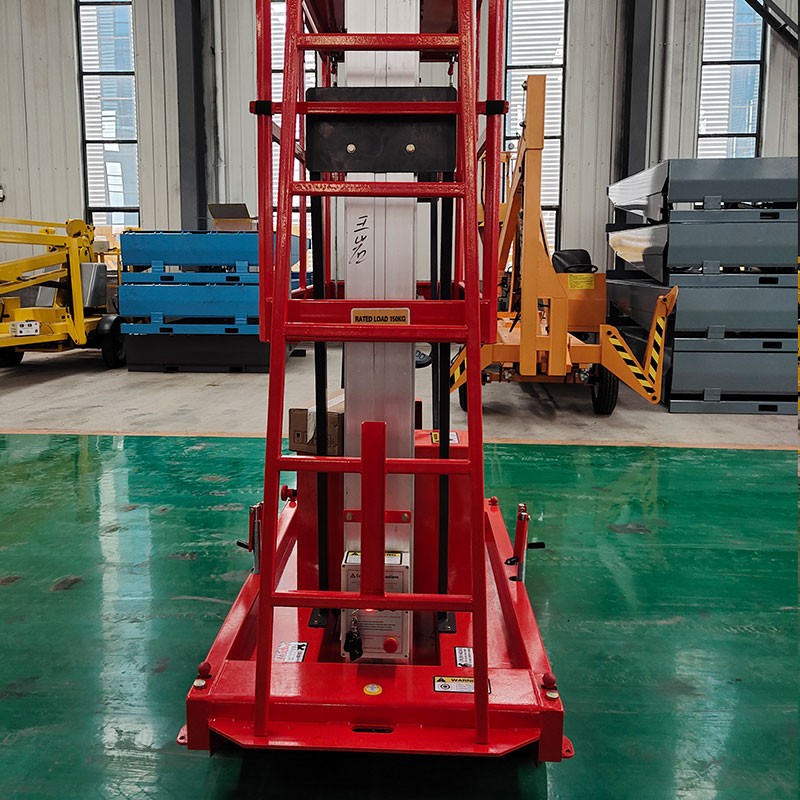

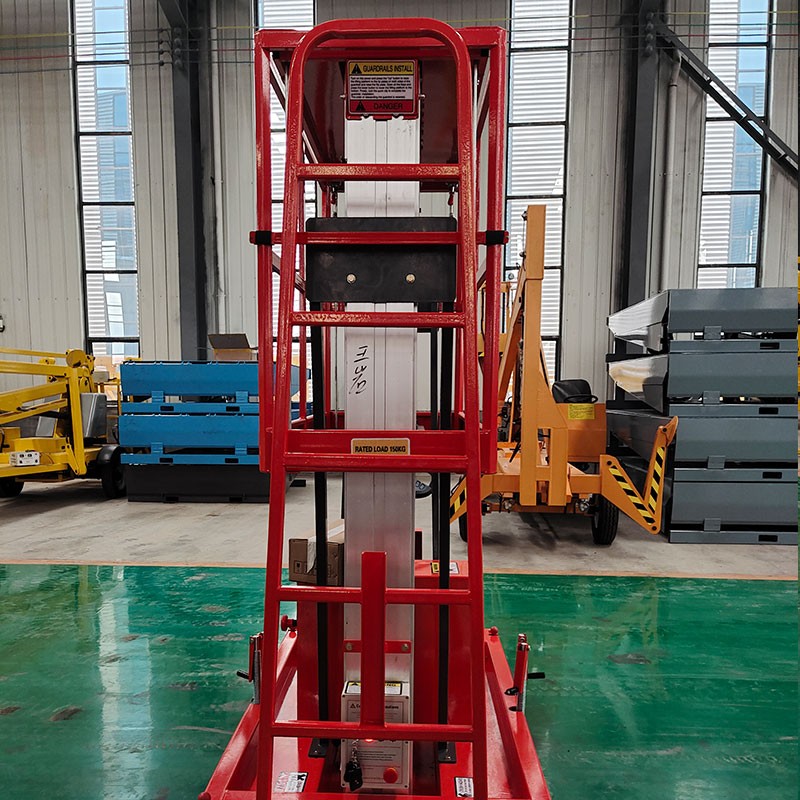

Single Mast | XYHLH4-150-1 | 4 | 6 | 0.65*0.65*1.1 | 1.42*0.78*1.97 | 1.70*1.91 | 280 |
| XYHLH6-150-1 | 6 | 8 | 0.65*0.65*1.1 | 1.42*0.78*1.97 | 1.70*1.91 | 360 | |
| XYHLH8-130-1 | 8 | 10 | 0.65*0.65*1.1 | 1.42*0.78*1.97 | 1.70*1.91 | 380 | |
| XYHLH10-130-1 | 10 | 12 | 0.65*0.65*1.1 | 1.42*0.78*1.97 | 1.70*1.91 | 420 | |

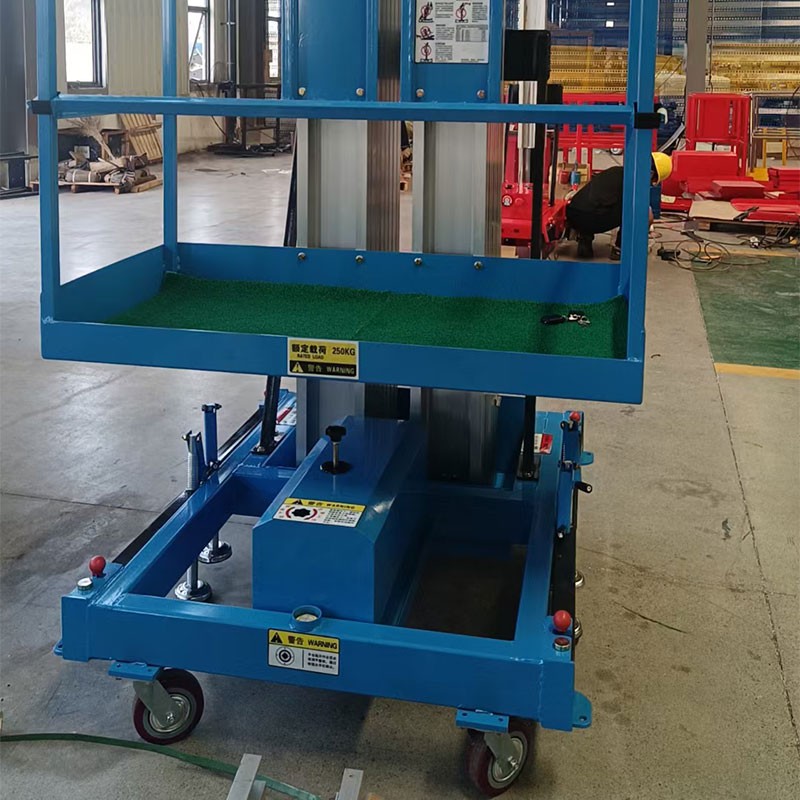

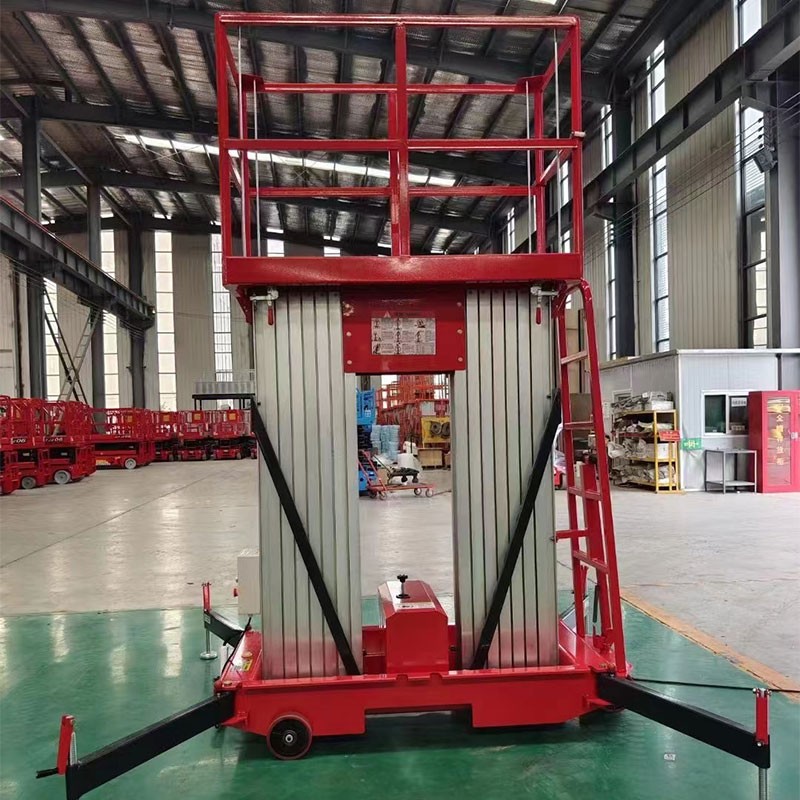

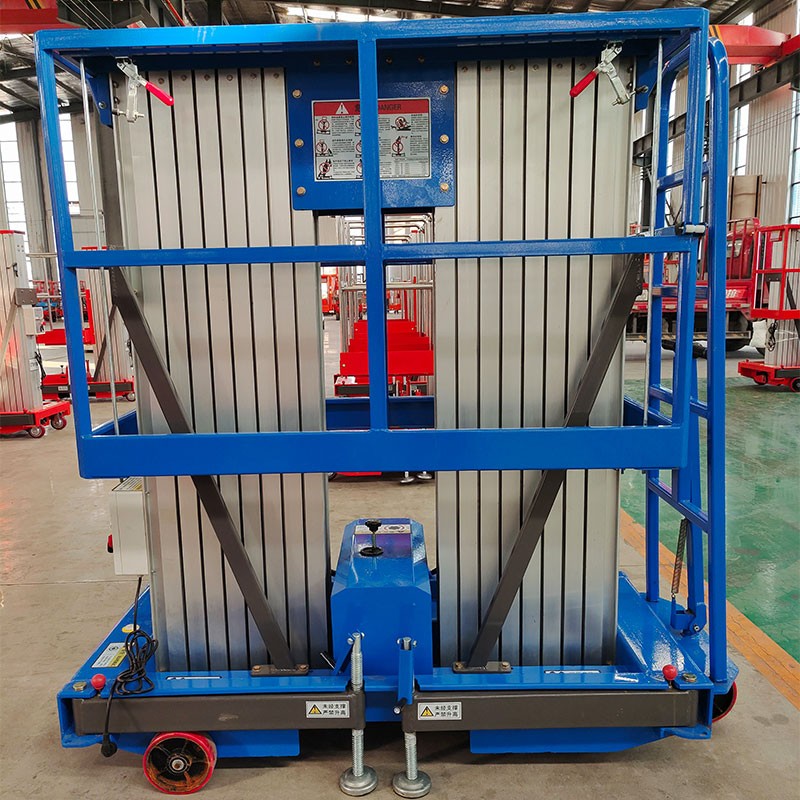

Double Mast | XYHLH6-300-2 | 6 | 8 | 1.2*0.63*1.1 | 1.55*0.85*2.0 | 1.69*1.81 | 510 |
| XYHLH8-300-2 | 8 | 10 | 1.2*0.63*1.1 | 1.55*0.85*2.0 | 1.69*1.81 | 550 | |
| XYHLH10-250-2 | 10 | 12 | 1.5*0.63*1.1 | 1.84*0.85*2.0 | 1.95*2.26 | 690 | |
| XYHLH12-200-2 | 12 | 14 | 1.5*0.63*1.1 | 1.84*0.85*2.0 | 1.95*2.26 | 730 | |
| XYHLH14-150-2 | 14 | 16 | 1.5*0.63*1.1 | 1.95*1.05*2.39 | 2.24*2.41 | 790 | |
Three Mast | XYHLH12-200-3 | 12 | 14 | 1.57*0.9*1.1 | 1.9*1.1*1.98 | 2.22*2.27 | 1050 |
| XYHLH14-200-3 | 14 | 16 | 1.57*0.9*1.1 | 1.9*1.2*2.3 | 2.95*2.58 | 1120 | |
| XYHLH16-200-3 | 16 | 18 | 1.57*0.9*1.1 | 2.0*1.2*2.7 | 2.95*2.58 | 1200 | |
Four Mast | XYHLH12-200-4 | 12 | 14 | 1.57*0.9 | 1.9*1.2*2.0 | 2.95*2.58 | 1050 |
| XYHLH14-200-4 | 14 | 16 | 1.57*0.9 | 1.9*1.2*2.3 | 2.95*2.58 | 1150 | |
| XYHLH16-200-4 | 16 | 18 | 1.57*0.9 | 1.9*1.2*2.7 | 2.95*2.58 | 1250 | |
| XYHLH18-200-4 | 18 | 20 | 1.57*0.9 | 2.0*1.4*2.96 | 3.05*2.78 | 1480 | |
| XYHLH20-200-4 | 20 | 22 | 1.57*0.9 | 4.3*1.4*2.25 | 5.35*2.78 | 2600 |
