Powered by the hydraulic rear‑axle drive system, this mini‑sized self‑propelled aerial‑lift covers working heights from 3‑14 meters with a rated load capacity of 230‑550 kg. It comes with automatic walking function and adjustable high‑low travelling speed to adapt to diverse‑job‑site conditions. Only one operator can complete continuous lifting, forward‑backward movement and steering, widely used for large‑scale overhead operations in stations, docks, malls and airport terminals.
PRODUCT DESCRIPTION

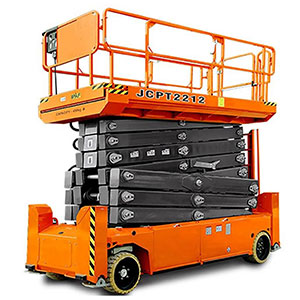

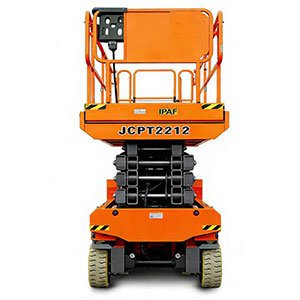

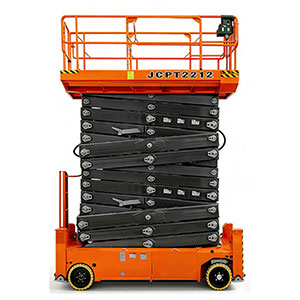

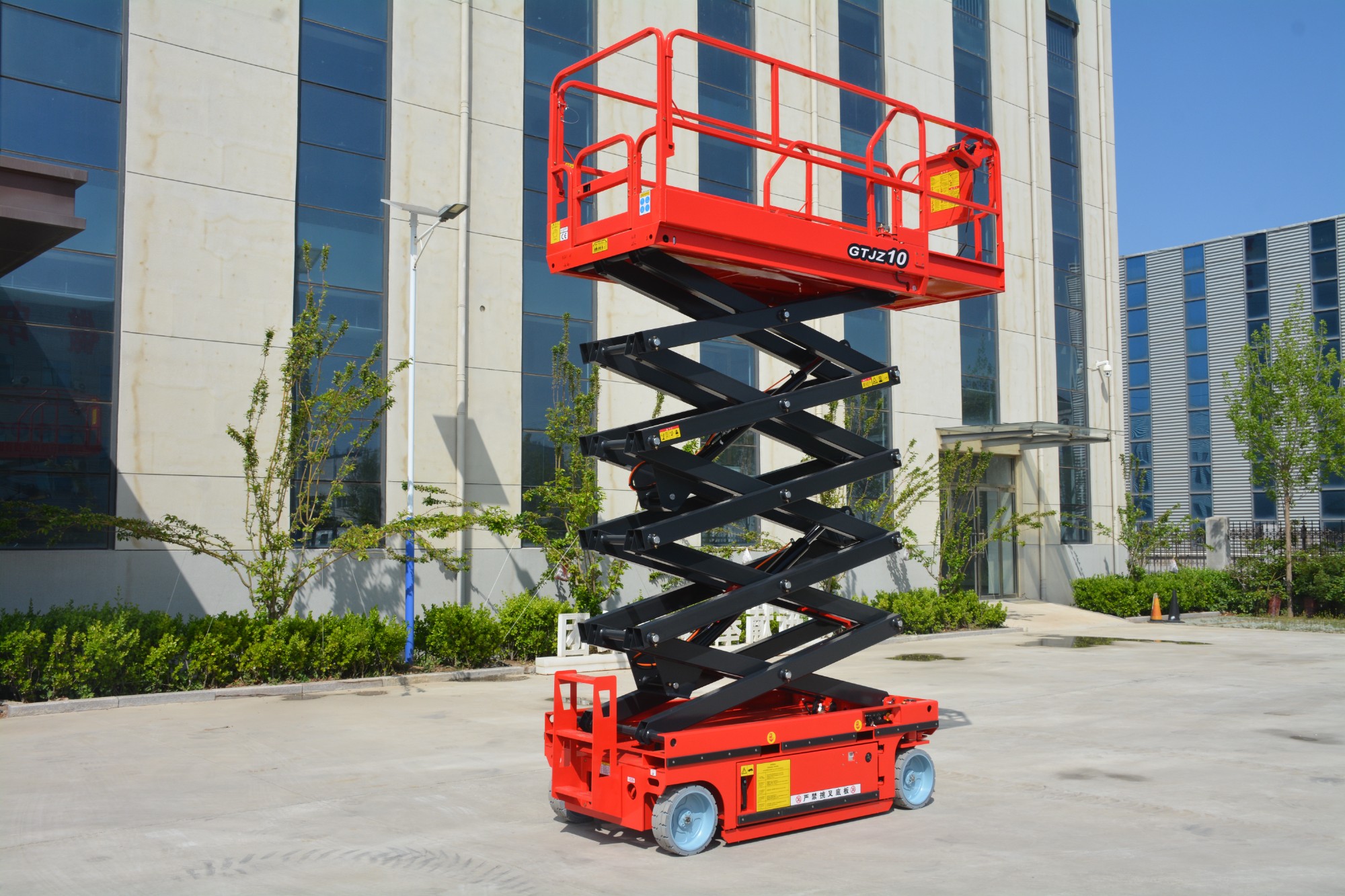

High-Efficiency Self-Propelled Scissor Lifts
Our self-propelled scissor lifts offer complete autonomy, eliminating the need for external power or manual towing. Designed for single-operator use, this equipment maximizes job site efficiency and convenience. It is the premier choice for high-altitude tasks, including facility maintenance, industrial cleaning, and structural repairs.
Platform Heights: 3m to 14m
Load Capacity: 230kg to 550kg
PRODUCT CUSTOMIZATION
We offer tailor-made solutions to ensure our equipment perfectly aligns with your specific operational requirements. Our extensive customization options include personalized color schemes, branding, logos, and nameplates, allowing the final product to reflect your professional identity.
PRODUCT DETAILS
Premium Build & Advanced Safety Systems

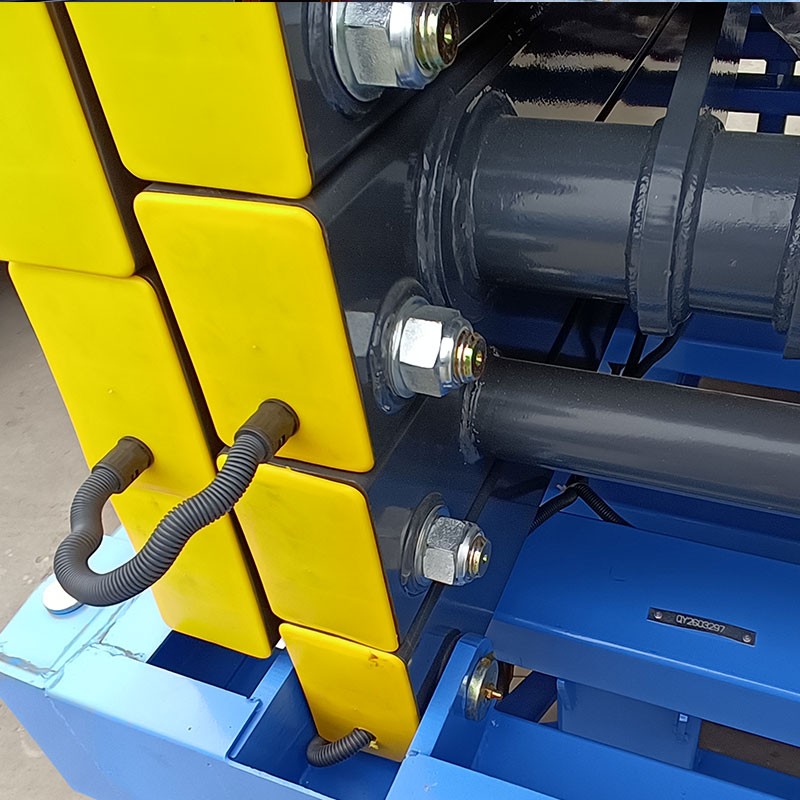

Superior Durability: The structure features full-body electrophoresis coating for elite corrosion resistance, paired with salt-bath nitrided, maintenance-free shaft pins.
Comprehensive Safety Suite: Fully equipped with overload, pit, and incline protection, plus a redundant emergency system (emergency stop, emergency descent, and secondary descent).
Operational Efficiency: Features a pedal-extended platform for quick access to work points and foldable guardrails for compact storage/transport.
High Performance: Boasts a 25% gradeability for smooth slope navigation.
Smart Maintenance: A swivel-out chassis and automatic fault code display ensure effortless servicing and troubleshooting.
Parameters
| Parameters | GTJZD03 | GTJZD04 | GTJZD06 | GTJZD06A | GTJZD08 | GTJZD08A | GTJZD10 | GTJZD12 | GTJZD14 |
| Max. lifting height | 3m | 4m | 6m | 6m | 8m | 8m | 10m | 11.8m | 13.8m |
| Max. working height | 5m | 6m | 8m | 8m | 10m | 10m | 12m | 13.8m | 15.8m |
| Max. loading capacity | 230kg | 230kg | 550kg | 380kg | 450kg | 230kg | 320kg | 320kg | 227kg |
| Loading capacity of extension platform | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Platform size | 1.29X0.7m | 1.29X0.7m | 2.29X1.13X1.1m | 2.29X0.81X1.1m | 2.29X1.13X1.1m | 2.29X0.81X1.1m | 2.29x1.13x1.1m | 2.29x1.13x1.1m | 2.67x1.13x1.1m |
| Platform extension size | 0.6m | 0.6m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Min. ground clearance(Close/Open) | 0.06/0.015m | 0.06/0.015m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m |
| Wheelbase | 1.05m | 1.05m | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | 2.26m |
| Min. turning radius（Outer wheel / Inner wheel） | 1.35m/0.3m | 1.35m/0.3m | 0/2.2m | 3.1m/0m | 0/2.2m | 0/3.1m | 2.2/0m | 2.2/0m | 2.7/0m |

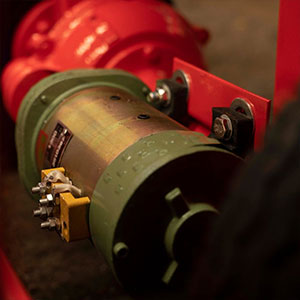

| Drive motor | 2X24V DC/0.4kw | 2X24V DC/0.4kw | 24V DCX3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw |
| Lifting motor | 24V DC/0.8kw | 24V DC/0.8kw | 24V DCX3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw | 24V/4.5kw |
| Ground speed(Close) | 4.0km/h | 4.0km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Ground speed(Open) | 0.5km/h | 0.5km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Lifting speed | 4-6m/min | 4-6m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |

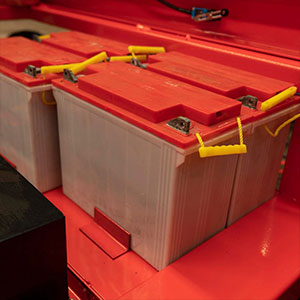

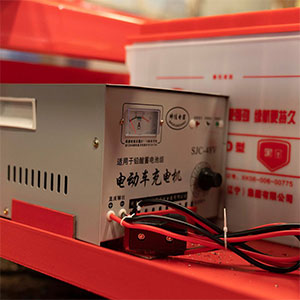

| Battery | 2X12V/80Ah | 2X12V/80Ah | 4X12V/200Ah | 4X12V/200Ah | 4X12V/200Ah | 4X12V/200Ah | 4X12V/200Ah | 4X12V/200Ah | 4X12V/200Ah |
| Max. gradeability | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% | 25% |
| Max. allowable working angle | 2°/3° | 2°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Tyre | φ230X80mm | φ230X80mm | φ381X127mm | φ381X127mm | φ381X127mm | φ381X127mm | φ381X127mm | φ381X127mm | φ381X127mm |
| Overall size(Folding guardrail) | 1.46X0.76X1.59m | 1.46X0.76X1.67m | 2.48X1.19X1.68m | 2.48X0.81X1.73m | 2.48X1.19X1.82m | 2.48X0.85X1.85m | 2.495X1.19X1.92m | 2.495X1.19X2.05m | 2.495X1.19X2.06m |
| Overall size(Unfolded guardrail) | 1.46X0.76X2.01m | 1.46X0.76X2.03m | 2.48X1.19X2.19m | 2.48X0.81X2.18m | 2.48X1.19X2.32m | 2.48X0.85X1.85m | 2.495X1.19X1.92m | 2.495X1.19X2.05m | 2.495X1.19X2.06m |
| Overall weight | 815kg | 890kg | 2050kg | 1880kg | 2190kg | 2030kg | 2500kg | 2950kg | 3390kg |
